The ultimate CCIE Data Center lab physical cabling topology

From Iwan
Jump to: navigation, search

Hey all,

It's been a while again that I posted something.

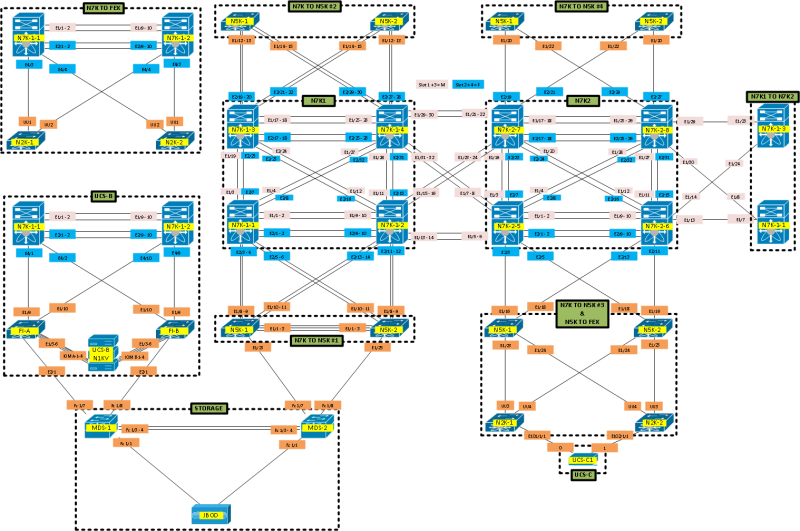

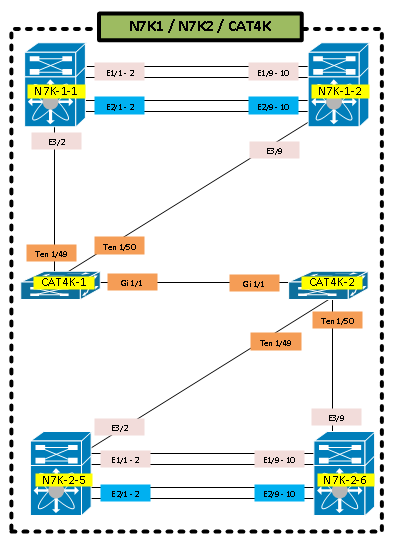

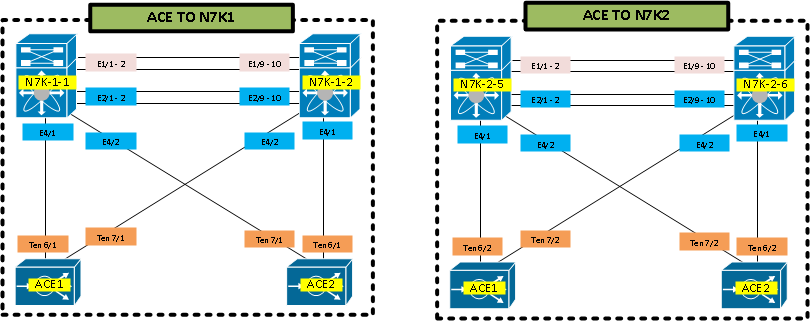

I just finished a pretty good and flexible CCIE Data Center cabling topology.

This diagram is partly based on the INE diagram that they use for their Nexus bootcamp. I made it a bit more fancy and customized it based on my own lab environment.

Hope you like it as well!
